Description

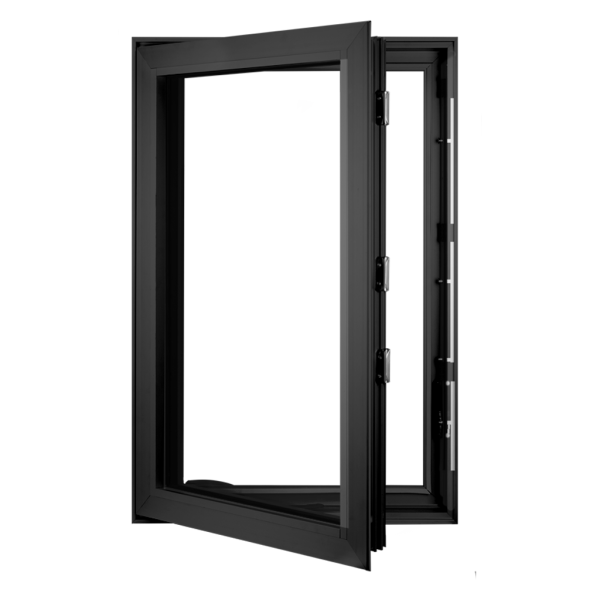

Casement & Awning Windows
Key Benefits Durability and ease of use Enhanced energy efficiency
Key Benefits
Durability and ease of use
- Heavy duty extruded aluminum
- 20 mil anodizing thickness
- Even sight lines
- Aluminum guide for window rollers
- Weep hole covers
Enhanced energy efficiency
- Beveled, multi-chambered extruded aluminum featuring thermal breaks improves thermal performance while providing a slim and elegant appearance
- 3-1/4” frame depth engineered to host heavier insulated glass units of specialty glass packages
- Optional Duralite spacer enhances thermal performance of glass components
- Full double weather stripping helps prevent elements infiltration
- 1” dual pane insulated glass unit featuring LoE3 glass is standard
- Optional triple pane glass for exceptional thermal performance
- Argon gas filled glass chambers for increased energy savings are standard for all glass packages
Operator & Locking System
The Operator features a two-directional fixing for superior strength and stability: smooth operation and maximum air/water performance.
- Casement hardware opens full 90°
- Hardware colors to match frame
- Multi-point locking system
Operator & Locking Palette
Bronze Anodized
Clear Anodized
Autolock
Casement Operator
Casement handle
Double weather Stripping
Full double weather stripping helps prevent elements infiltration.
Window Weep Holes
Weep holes effectively prevent debris obstruction and allow for proper water drainage.
Weather stripping close up
Weather stripping
Weep hole
Casement & Awning Hinges
Standard Casement (CM)
Corrosion resistant, all stainless steel 4-bar hinges for casement and awning applications feature an asymmetrical design to maximize weather sealing as well as high gust loading.
Hinged Casement (CM)
Hinged Casements feature high-quality, strong aluminum hinges manufactured in Germany by Dr. Hahn, exclusively distributed by ASSA ABLOY.
Awning (AW)
Corrosion resistant, all stainless steel 4-bar hinges for casement and awning applications feature an asymmetrical design to maximize weather sealing as well as high gust loading.
4-bar casement hinge
Casement operating system
Dr. Hahn hinge
Dr. Hahn hinge inside view
Awning hinge with operator
Color
For a unique look our Aluminum windows and doors are available in several colors that will complement the look of your home. Actual color may vary from representation.
- High performance anodization
- Corrosion resistant
- High heat tolerance
Bronze Aluminum
Amond
TriplePane Glass
Our triple pane insulated glass unit consists of three layers of glass sealed with Duralite spacers. Inner glass chambers are filled with argon gas.
Along with better home insulation, a triple pane window is among the very best choices for an energy efficient home. Stop energy from escaping through inefficient windows, upgrade to new GS Series windows today.
- 2 LoE3 glass panes for maximum energy savings
- 2 inner chambers are filled with argon gas
- Increased air space improves sound reduction efficacy
- Patio door insulated glass units feature thicker glass
Triplepane laminated glass diagram
Durapane Laminated Glass
DuraPane laminated glass is an innovative glazing system similar to automobile windshield glass, consisting of a plastic safety interlayer placed between two sheets of glass on one of the glass panes of the insulated glass unit.
DuraPane laminated glass has excellent sound reduction properties, making it a great choice for areas with high noise levels.
- Impact resistant glass panels
- STC ratings using DuraPane can reach levels up to 34-36 (Individual product ratings may vary due to window size and glass options)
Durapane laminated glass diagram
Tint Options
Glass Tint & Texture
Our variety of pattern glass designs are the preferred options for bathrooms, add character, privacy and dimension to windows or doors. Bronze and grey glass are available. Other glass patterns available upon request. Please contact your Value Sales Representative for more details.
Grey
Bronze
Delta Frost
Obscure
Glue Chip
Rain
Grid
Add an elegant element to your windows and doors with a grid design. With several patterns to choose from and the benefit of having the grids placed inside the insulated glass unit, cleaning your windows is easy and convenien.
5/8“
3/4“
5/8“
1“
Grid Pattern
Add an elegant element to your windows and doors with a grid design. With several patterns to choose from and the benefit of having the grids placed inside the insulated glass unit, cleaning your windows is easy and convenient.
For a full collection of grid patterns & configurations, please contact your local Value Windows & Doors dealer.
Colonial
Double Prairie
Marginal Mg 9
Marginal Mg 11
Retrofit Frame
For replacement applications. The replacement flange allows for convenient installation with no need to break out stucco.
Nail-On Frame
For new construction applications. This frame type allows targeted installation in a newly created opening.
Block Frame
For replacement applications. Block with sloped sill adapter is also available.
