Description

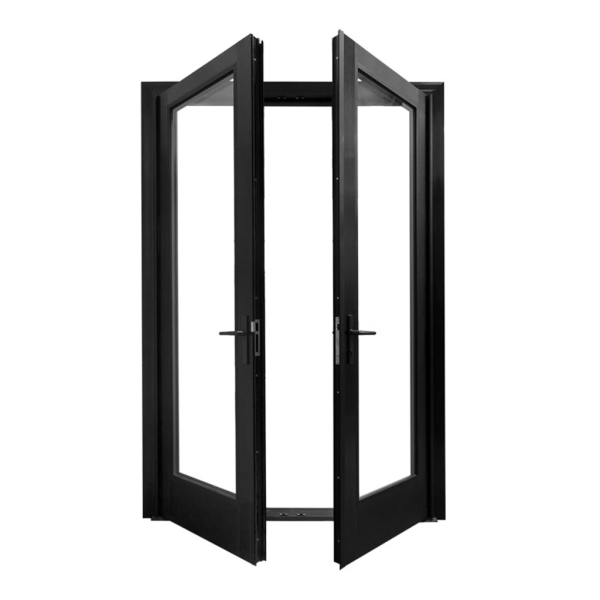

French Swing Door
Key Benefits
Key Benefits
- 20 micron anodizing thickness provides long-lasting finish and consistent color
- Frame and panels are mechanically fastened for additional support, and structural integrity
- 5-1/4” jamb width
- Reinforcement in larger size doors ensures additional structural stability for oversize capabilities
- Four wheel bearing rollers in stainless steel casing are standard. The bearings provide for an exceptionally smooth slide, and their exceptional engineering allows these rollers to hold and slide the heavier door panels….
Handles & Wheel Rollers
Aluminum series doors feature outstanding aluminum construction and premium hardware.
- High-grade aluminum material
- High-performance hinges allow ease of operation for panels featuring our heaviest glass packages
- Contemporary and ergonomically designed handle delivers smooth action and a modern look
- Locking system is corrosive resistant and provides remarkable forced entry resistance
- Hardware colors match frame

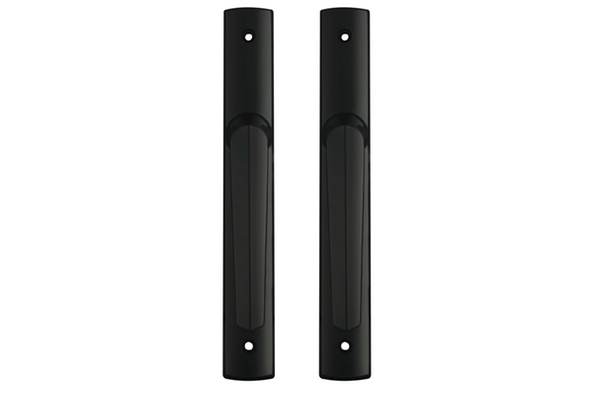

Lockwood Optimum Mortise handle

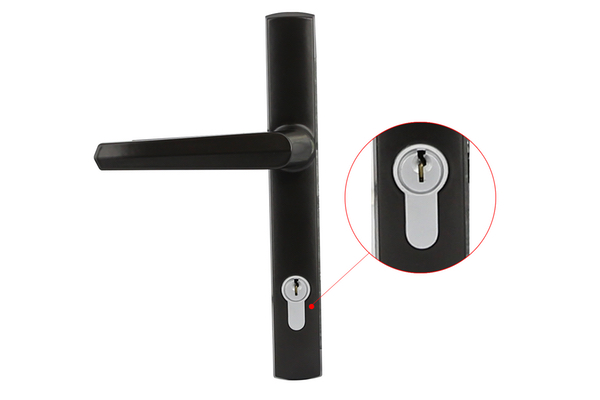

Optional Key

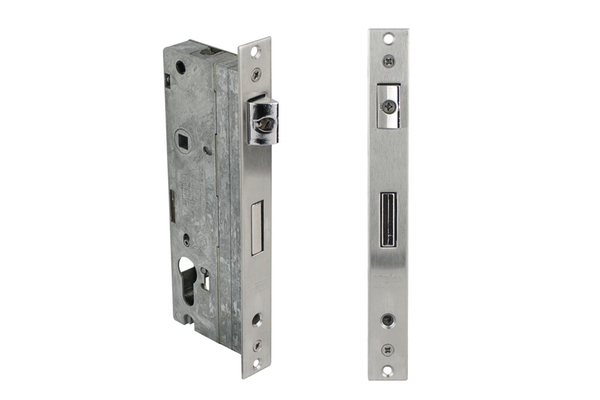

Inside view of Mortise Locking System
Concealed Continuous Hinge
Our heavy duty continuous hinges are made of high strength aluminum and help create added security, smooth operation and provides long service life.

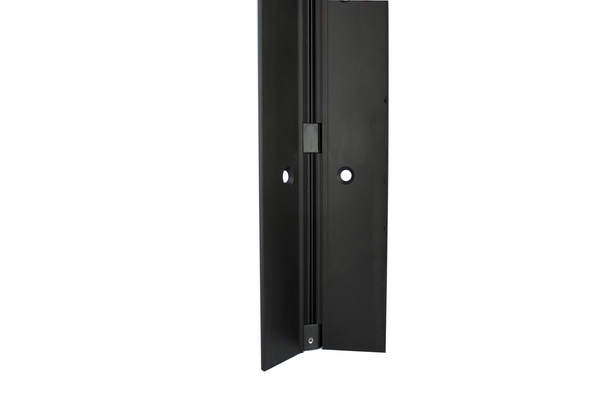

Continuous hinge

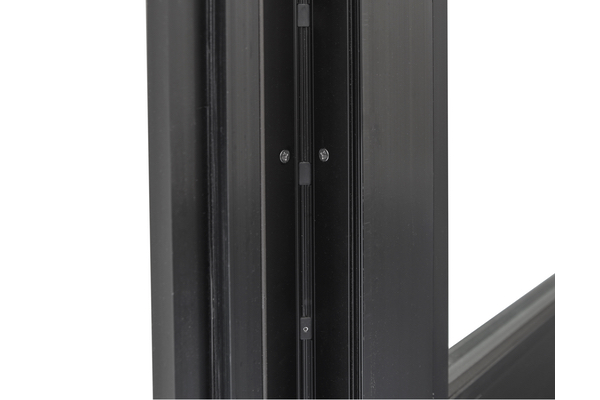

Continuous hinge on door
Color
For a unique look our Aluminum windows and doors are available in several colors that will complement the look of your home. Actual color may vary from representation.
- High performance anodization
- Corrosion resistant
- High heat tolerance
Bronze Aluminum
Amond
TriplePane Glass
Our triple pane insulated glass unit consists of three layers of glass sealed with Duralite spacers. Inner glass chambers are filled with argon gas.
Along with better home insulation, a triple pane window is among the very best choices for an energy efficient home. Stop energy from escaping through inefficient windows, upgrade to new GS Series windows today.
- 2 LoE3 glass panes for maximum energy savings
- 2 inner chambers are filled with argon gas
- Increased air space improves sound reduction efficacy
- Patio door insulated glass units feature thicker glass
Triplepane laminated glass diagram
Durapane Laminated Glass
DuraPane laminated glass is an innovative glazing system similar to automobile windshield glass, consisting of a plastic safety interlayer placed between two sheets of glass on one of the glass panes of the insulated glass unit.
DuraPane laminated glass has excellent sound reduction properties, making it a great choice for areas with high noise levels.
- Impact resistant glass panels
- STC ratings using DuraPane can reach levels up to 34-36 (Individual product ratings may vary due to window size and glass options)
Durapane laminated glass diagram
Tint Options
Glass Tint & Texture
Our variety of pattern glass designs are the preferred options for bathrooms, add character, privacy and dimension to windows or doors. Bronze and grey glass are available. Other glass patterns available upon request. Please contact your Value Sales Representative for more details.
Grey
Bronze
Delta Frost
Obscure
Glue Chip
Rain
Grid
Add an elegant element to your windows and doors with a grid design. With several patterns to choose from and the benefit of having the grids placed inside the insulated glass unit, cleaning your windows is easy and convenien.
5/8“
3/4“
5/8“
1“
Grid Pattern
Add an elegant element to your windows and doors with a grid design. With several patterns to choose from and the benefit of having the grids placed inside the insulated glass unit, cleaning your windows is easy and convenient.
Colonial
Double Prairie
Marginal Mg 9
Marginal Mg 11
Retrofit Frame
For replacement applications. The replacement flange allows for convenient installation with no need to break out stucco.
Nail-On Frame
For new construction applications. This frame type allows targeted installation in a newly created opening.
Block Frame
For replacement applications. Block with sloped sill adapter is also available.
French Swing Door Styles
French doors come in a variety of styles to suit your needs. Below are just a few possible options for reference.
Style codes read from left to right as pictured in the diagram exterior view below. For example, SWO – XL would read as swing out door (SWO) that is operational (X) to the left (L).
2 Panel Door

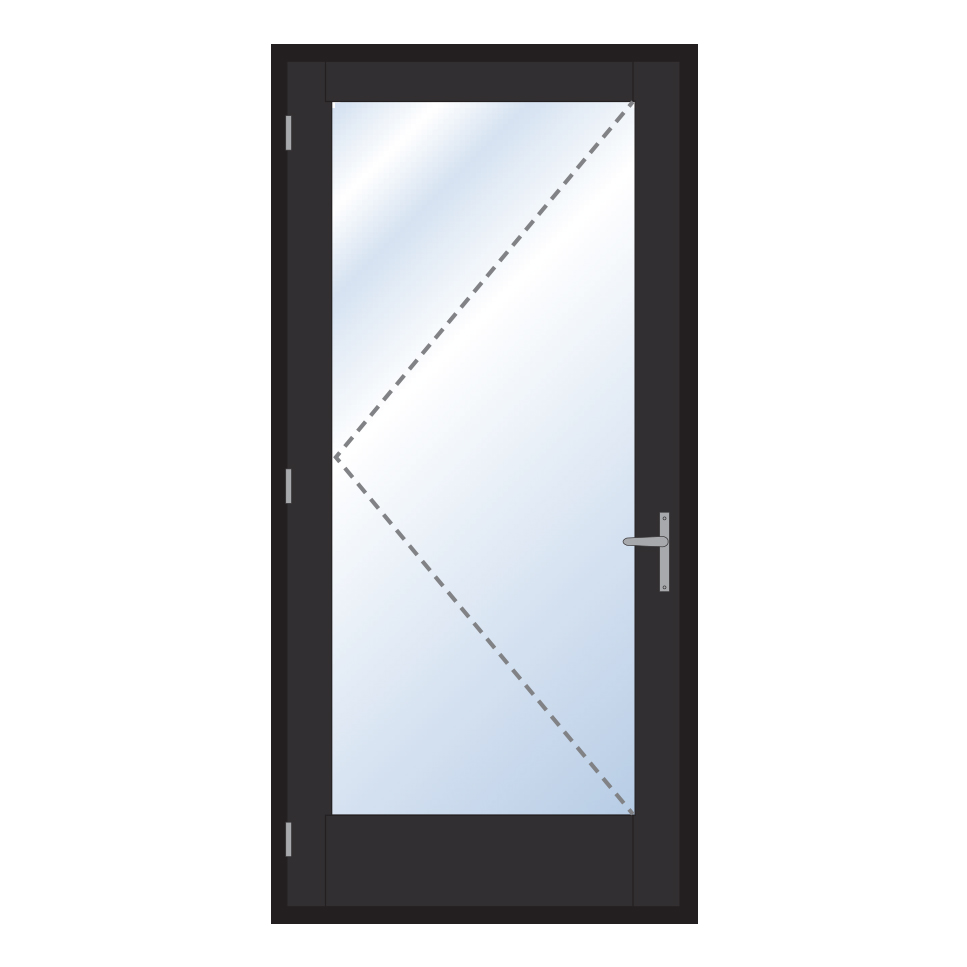

SWO-XL

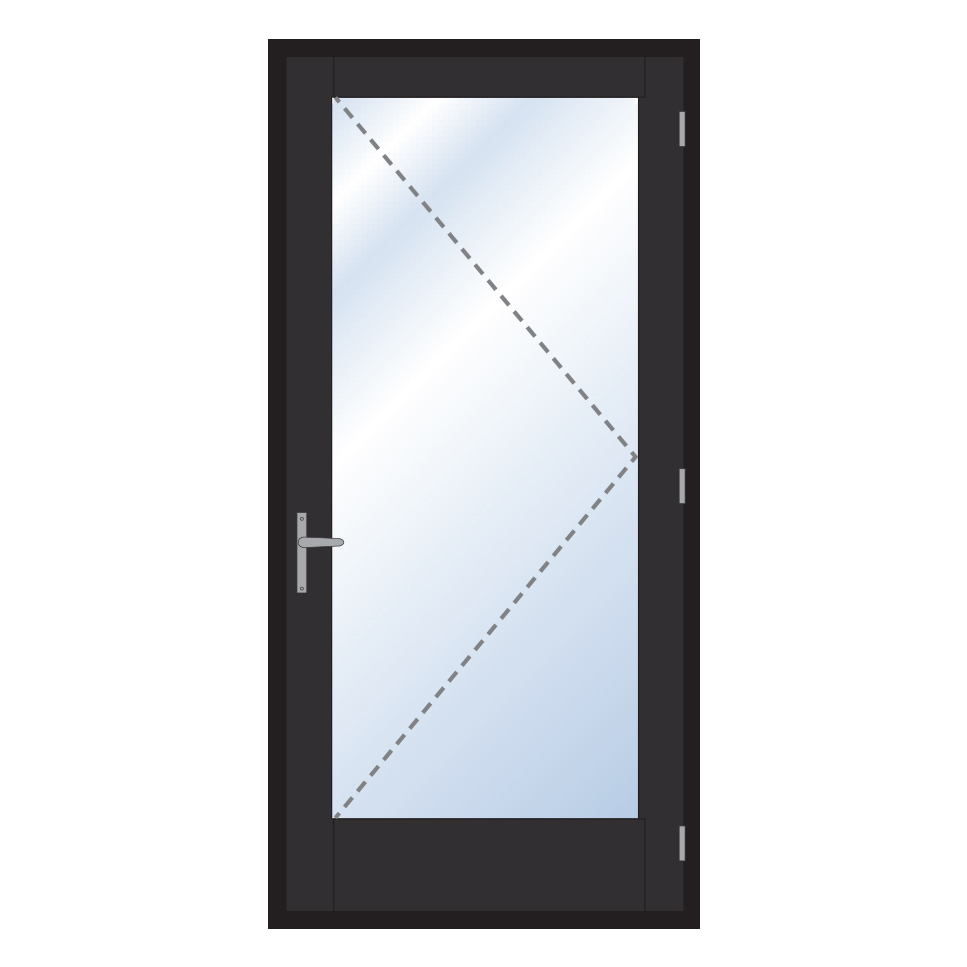

SWO-XR
SWO-XX
SWO-SXL

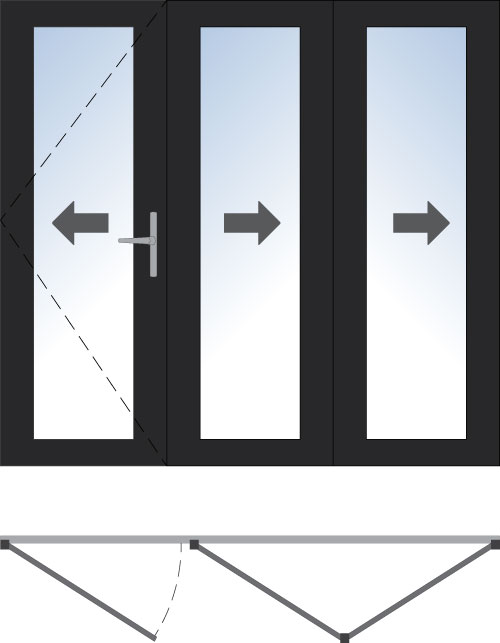

3 Panel Door

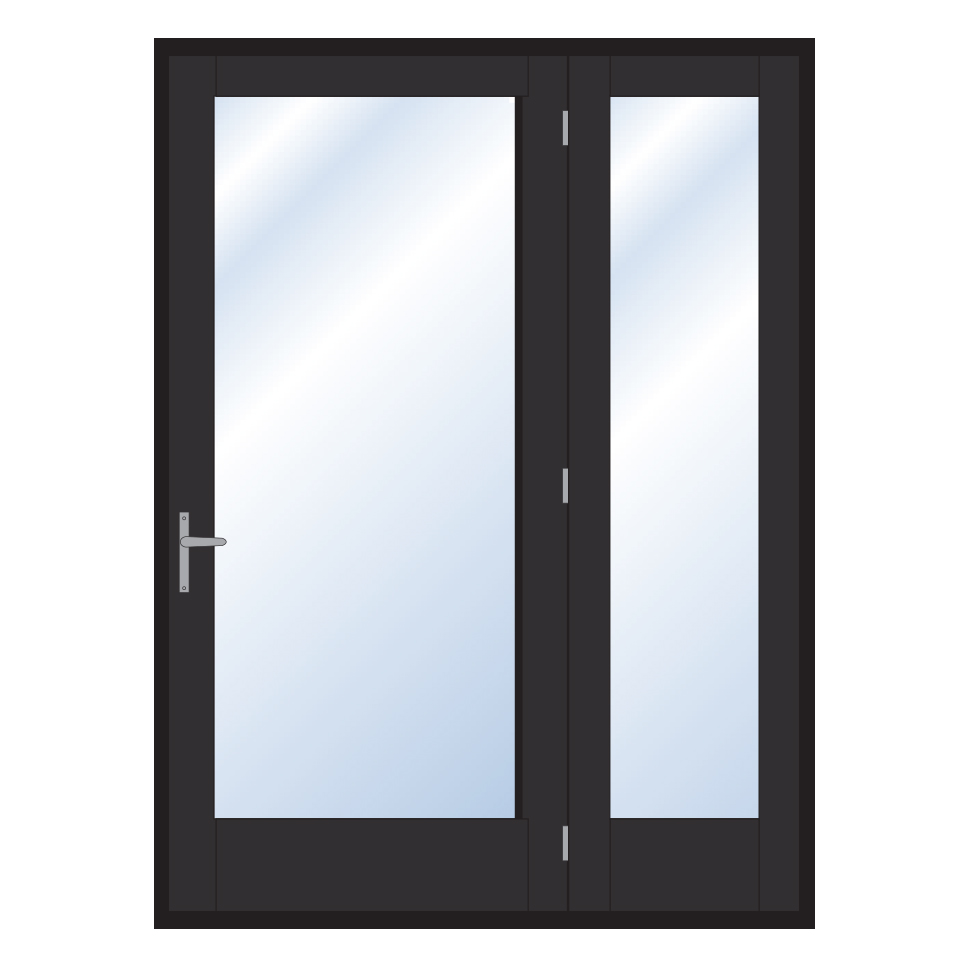

SWO-SXR
SWO-XLS
SWO-XRS

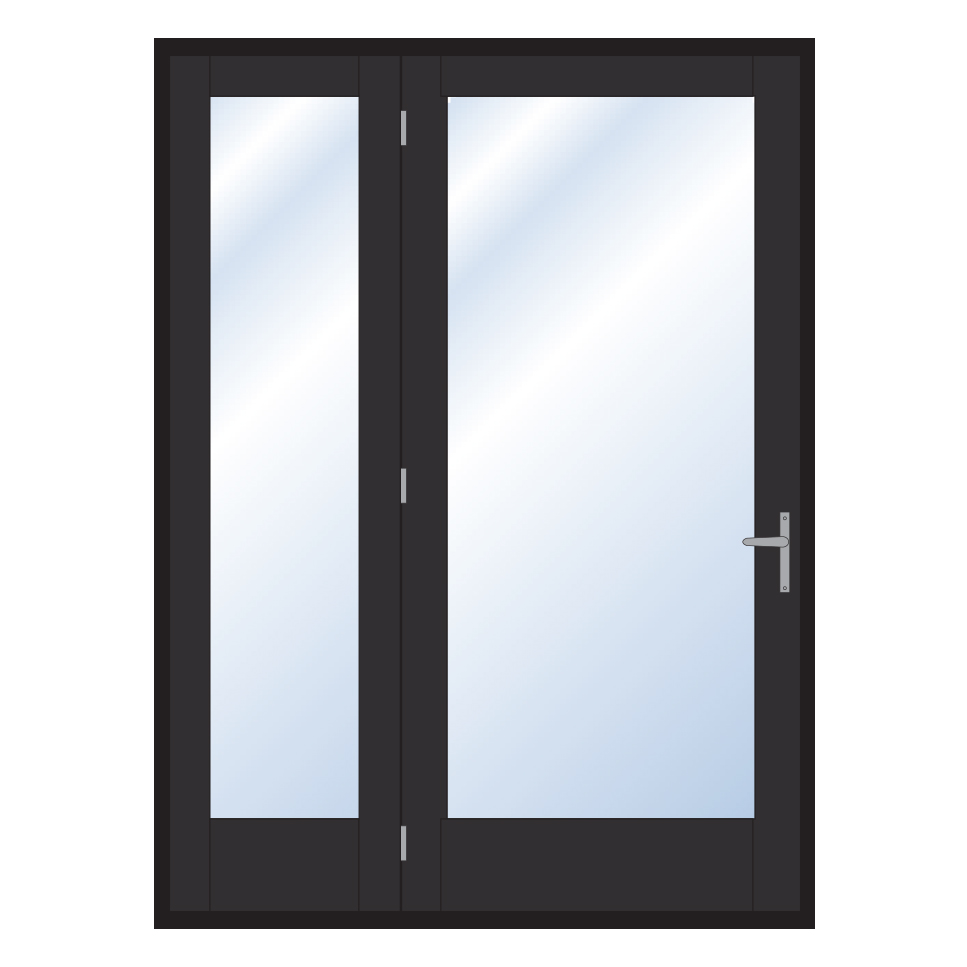

SWO-FXL
Features and Benefits
- ADA compliance – 10” bottom rail ½” sill height
- Beveled, multi-chambered extruded aluminum featuring thermal breaks
- Full double weather stripping helps prevent elements infiltration
- For additional styles view the “Styles” section
