Horizontal-Sliding-Window(vinyl GS)

Description

Horizontal-Sliding-Window

Horizontal sliding windows are smooth operating with right, left, or both sash operation options available.

Key Benefits

Energy Efficiency

Beveled, multi-chambered extruded vinyl improves energy efficiency while providing an aesthetic look

Maintenance

uPVC is virtually maintenance free. It never needs paint, and requires only an occasional wash and wipe to clean

Structural Integrity

Steel and aluminum reinforced sashes for structural integrity….

Design

Elegant beveled frame design with multiple glass, grid, and configurations available

Easy Operation

Dual nylon composite rollers are durable and help insure smooth, quiet openings and closings

Security

Autolook for easy locking and heavy duty hardware

Simple to Clean

Sliding sash can be removed to clean exterior glass from inside your home

Hardware

Handles & Locks

Automatic locks for horizontal and hung windows close and lock with one simple click. Integral pull rail makes opening the window easy.

One-touch close and lock
Modern, streamlined design
Integral pull rail for easy sash operation

Handle & Lock Palette

White

Amond

Autolock

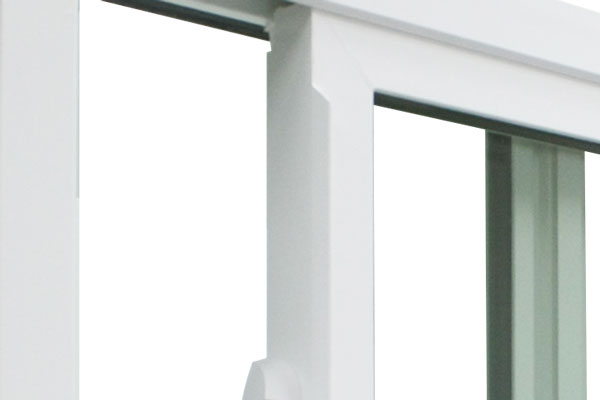

Integral pull rail

Vent Latch

Window Rollers & Weep Holes

Nylon window rollers are durable, providing smooth and quiet operation. Aluminum guides for the window roller ensure smooth and long-lasting operation. Weep hole design prevents debris obstruction to vent water efficiently.

Nylon wheel roller material
Aluminum Guide for smooth and quiet operation
Weep holes designed to prevent debris obstruction

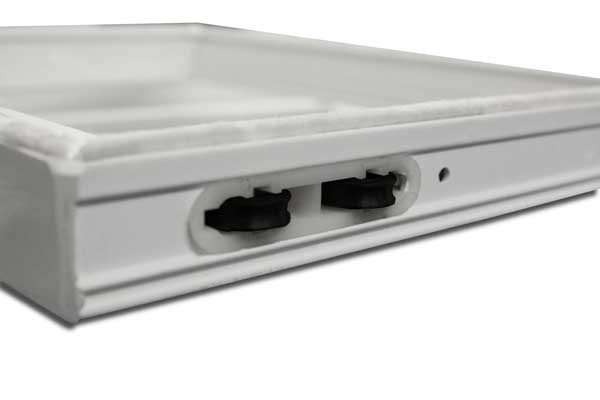

Nylon window roller

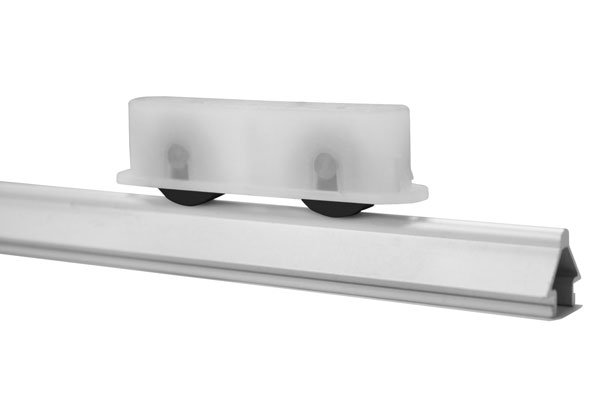

Aluminum roller guide

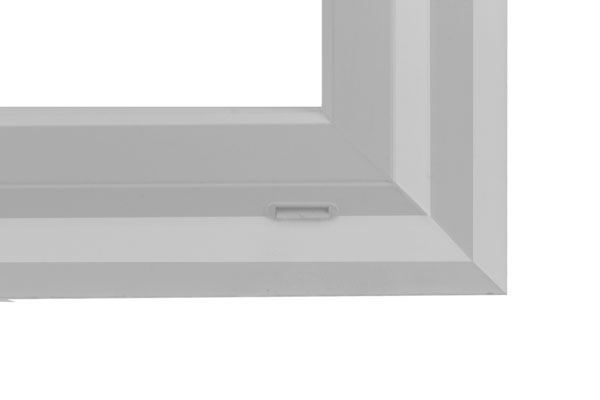

Weep hole

Color

Color

For a unique look GS Series windows and patio doors are available in two frame colors that will complement the look of your home..

Nylon wheel roller material
Weep holes designed to prevent debris obstruction

Standard Colors

White

Amond

Glass

Durapane Laminated Glass

DuraPane laminated glass is an innovative glazing system similar to automobile windshield glass, consisting of a plastic safety interlayer placed between two sheets of glass on one of the glass panes of the insulated glass unit.

DuraPane laminated glass has excellent sound reduction properties, making it a great choice for areas with high noise levels.

Impact resistant glass panels
STC ratings using DuraPane can reach levels up to 34-36 (Individual product ratings may vary due to window size and glass options)

Durapane laminated glass diagram

TriplePane Glass

Our triple pane insulated glass unit consists of three layers of glass sealed with Duralite spacers. Inner glass chambers are filled with argon gas.

Along with better home insulation, a triple pane window is among the very best choices for an energy efficient home. Stop energy from escaping through inefficient windows, upgrade to new GS Series windows today.

2 LoE3 glass panes for maximum energy savings
2 inner chambers are filled with argon gas
Increased air space improves sound reduction efficacy
Patio door insulated glass units feature thicker glass

Triplepane laminated glass diagram

Tint Options

Glass Tint & Texture

Our variety of pattern glass designs are the preferred options for bathrooms, add character, privacy and dimension to windows or doors. Bronze and grey glass are available. Other glass patterns available upon request. Please contact your Value Sales Representative for more details.

Grey

Bronze

Delta Frost

Obscure

Glue Chip

Rain

Grid

Add an elegant element to your windows and doors with a grid design. With several patterns to choose from and the benefit of having the grids placed inside the insulated glass unit, cleaning your windows is easy and convenient.
