Description

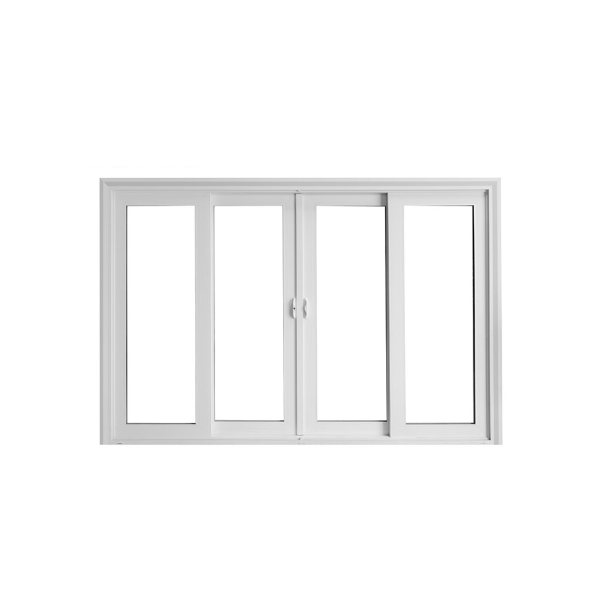

Patio Sliding Door
Key Benefits Durability and Ease of use Improves energy efficiency while providing an aesthetic look Ergonomic handle With dual point locking system for easy operation Heavy duty Aluminum rail system for smooth operation 5-5/8″ frame depth engineered to host heavier insulated glass units In-swing or out-swing operation For french swing doors are available and can…
Key Benefits
Durability and Ease of use
Improves energy efficiency while providing an aesthetic look
Ergonomic handle
With dual point locking system for easy operation
Heavy duty
Aluminum rail system for smooth operation
5-5/8″ frame depth
engineered to host heavier insulated glass units
In-swing or out-swing operation
For french swing doors are available and can be fixed or operable
Duralite spacer
Enhances thermal performance of glass components
1-3/16″ insulated glass unit
Featuring LoE3 glass
Optional TriplePane glass
for increased thermal performance
Optional DuraPane glass
for increased thermal performance and impact resistance
Handles & Wheel Rollers
GS Series doors feature outstanding vinyl construction, nylon wheel rollers in galvanized steel housings, aluminum rail guide system for rollers, ergonomic dual point locking handles, and much more.
- Ergonomic Dual Point Locking Handle
- Heavy Duty Aluminum Rail System
- Nylon Wheel Rollers
Patio Sliding Door Handle Palette
White
Amond
Ergonomic patio sliding door handle
Nylon wheel roller in galvanized steel housings
Color
Patio Sliding Door Handle Palette
- For a unique look GS Series windows and patio doors are available in two frame colors that will complement the look of your home.
White
Amond
Durapane Laminated Glass
DuraPane laminated glass is an innovative glazing system similar to automobile windshield glass, consisting of a plastic safety interlayer placed between two sheets of glass on one of the glass panes of the insulated glass unit.
DuraPane laminated glass has excellent sound reduction properties, making it a great choice for areas with high noise levels.
- Impact resistant glass panels
- STC ratings using DuraPane can reach levels up to 34-36 (Individual product ratings may vary due to window size and glass options)
Durapane laminated glass diagram
TriplePane Glass
Our triple pane insulated glass unit consists of three layers of glass sealed with Duralite spacers. Inner glass chambers are filled with argon gas.
Along with better home insulation, a triple pane window is among the very best choices for an energy efficient home. Stop energy from escaping through inefficient windows, upgrade to new GS Series windows today.
- 2 LoE3 glass panes for maximum energy savings
- 2 inner chambers are filled with argon gas
- Increased air space improves sound reduction efficacy
- Patio door insulated glass units feature thicker glass
Triplepane laminated glass diagram
Tint Options
Glass Tint & Texture
Our variety of pattern glass designs are the preferred options for bathrooms, add character, privacy and dimension to windows or doors. Bronze and grey glass are available. Other glass patterns available upon request. Please contact your Value Sales Representative for more details.
Grey
Bronze
Delta Frost
Obscure
Glue Chip
Rain
Grid
Add an elegant element to your windows and doors with a grid design. With several patterns to choose from and the benefit of having the grids placed inside the insulated glass unit, cleaning your windows is easy and convenien.
5/8“
3/4“
5/8“
1“
Grid Pattern
Add an elegant element to your windows and doors with a grid design. With several patterns to choose from and the benefit of having the grids placed inside the insulated glass unit, cleaning your windows is easy and convenient.
Colonial
Double Prairie
Marginal Mg 9
Marginal Mg 11
Retrofit Frame
For replacement applications. The replacement flange allows for convenient installation with no need to break out stucco.
Nail-On Frame
For new construction applications. This frame type allows targeted installation in a newly created opening.
Block Frame
For replacement applications. Block with sloped sill adapter is also available.
