Description
Single Hung Windows
Simple Hung Windows Key Benefits Energy Efficiency The superior insulating properties of vinyl designed with heat reducing multi- chambered pro les and Cardinal 366 glass reduce heat transfer up to 3 x that of standard single pane windows, with standard triple glaze and Laminated glass packages available with Argon gas lled glass chambers Maintenance Unlike…
Key Benefits
Energy Efficiency
The superior insulating properties of vinyl designed with heat reducing multi- chambered pro les and Cardinal 366 glass reduce heat transfer up to 3 x that of standard single pane windows, with standard triple glaze and Laminated glass packages available with Argon gas lled glass chambers
Maintenance
Unlike aluminum and wood, uPVC is virtually maintenance free. It never needs paint, and requires only an occasional wash and wipe to clean…
Aesthetic Appeal
Even sight lines, beveled frame, multiple glass and grid options
Easy Operation
Dual nylon composite rollers are durable and help insure smooth, quiet openings and closings….
Handles & Locks
Automatic locks for horizontal and hung windows close and lock with one simple click. Integral pull rail makes opening the window easy.
- One-touch close and lock
- Vent latch for adjustable ventilation
- Weep holes designed to prevent debris obstruction
- Constant force counterweight balance for hung models ensure effortless operation
Handle & Lock Palette
White
Amond
Autolock with tilt latches for hung models

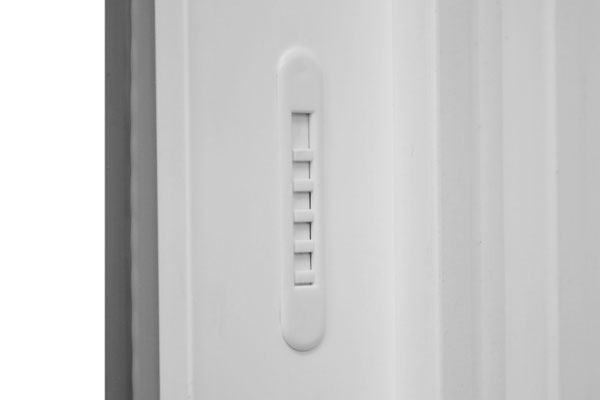

Vent latch
Weep hole
Constant force counterweight balance for hung models
Color
For a unique look GS Series windows and patio doors are available in two frame colors that will complement the look of your home..
Standard Colors
White
Amond
Durapane Laminated Glass
DuraPane laminated glass is an innovative glazing system similar to automobile windshield glass, consisting of a plastic safety interlayer placed between two sheets of glass on one of the glass panes of the insulated glass unit.
DuraPane laminated glass has excellent sound reduction properties, making it a great choice for areas with high noise levels.
- Impact resistant glass panels
- STC ratings using DuraPane can reach levels up to 34-36 (Individual product ratings may vary due to window size and glass options)
Durapane laminated glass diagram
TriplePane Glass
Our triple pane insulated glass unit consists of three layers of glass sealed with Duralite spacers. Inner glass chambers are filled with argon gas.
Along with better home insulation, a triple pane window is among the very best choices for an energy efficient home. Stop energy from escaping through inefficient windows, upgrade to new GS Series windows today.
- 2 LoE3 glass panes for maximum energy savings
- 2 inner chambers are filled with argon gas
- Increased air space improves sound reduction efficacy
- Patio door insulated glass units feature thicker glass
Triplepane laminated glass diagram
Tint Options
Glass Tint & Texture
Our variety of pattern glass designs are the preferred options for bathrooms, add character, privacy and dimension to windows or doors. Bronze and grey glass are available. Other glass patterns available upon request. Please contact your Value Sales Representative for more details.
Grey
Bronze
Delta Frost
Obscure
Glue Chip
Rain

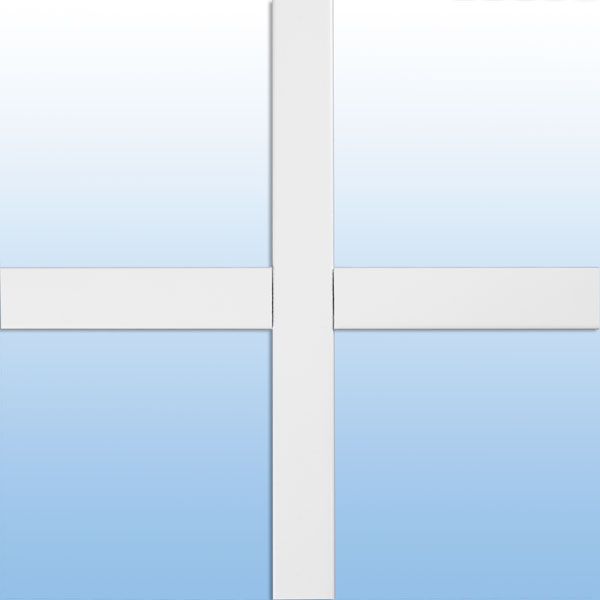

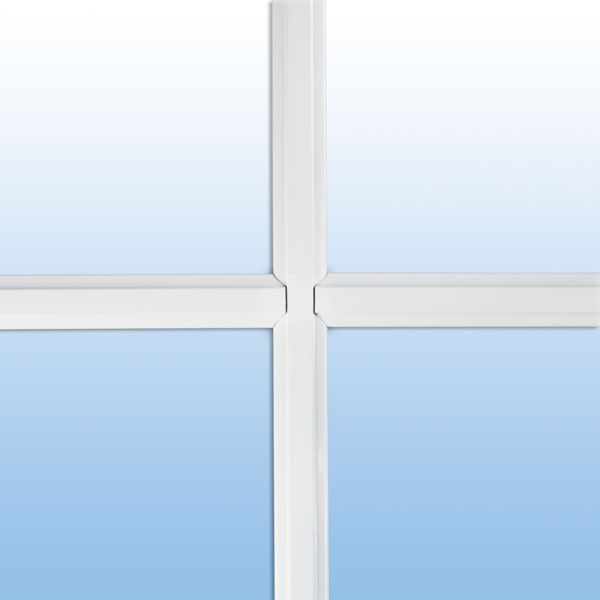

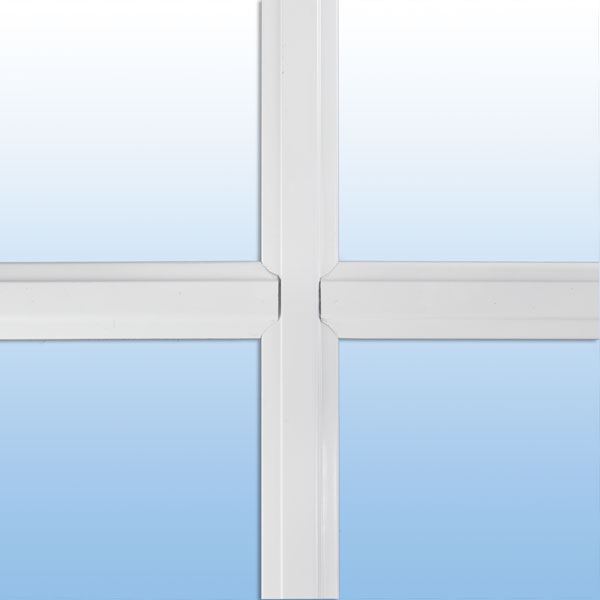

Grid
Add an elegant element to your windows and doors with a grid design. With several patterns to choose from and the benefit of having the grids placed inside the insulated glass unit, cleaning your windows is easy and convenient.
5/8“
3/4“
5/8“
1“
Grid Pattern
Add an elegant element to your windows and doors with a grid design. With several patterns to choose from and the benefit of having the grids placed inside the insulated glass unit, cleaning your windows is easy and convenient.
Colonial
Double Prairie
Marginal Mg 12
Marginal Mg 18
Retrofit Frame
For replacement applications. The replacement flange allows for convenient installation with no need to break out stucco.
Nail-On Frame
For new construction applications. This frame type allows targeted installation in a newly created opening.
Block Frame
For replacement applications. Block with sloped sill adapter is also available.
